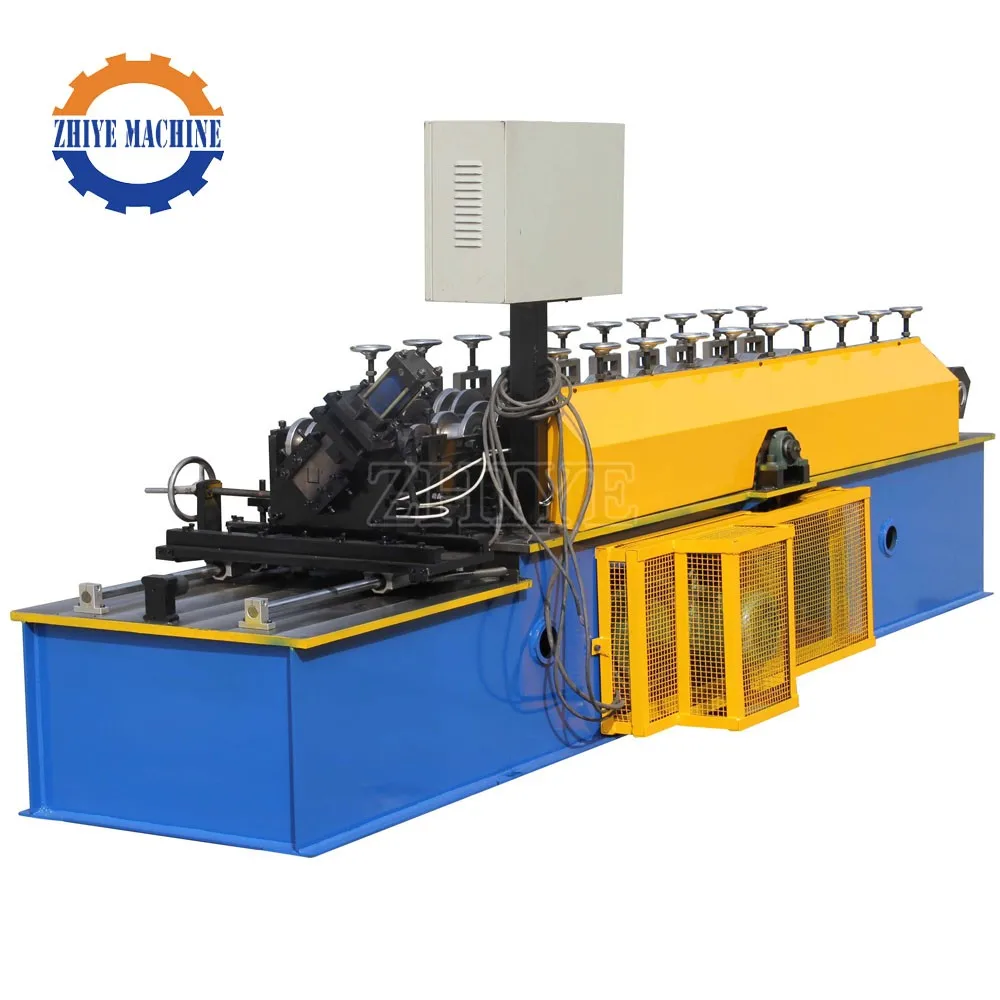

Automatic Steel Light Gauge Roll Forming Making Machine

  • 1 - 1 Sets
    $12,000.00
  • 2 - 2 Sets
    $11,800.00
  • 3 - 4 Sets
    $11,500.00
  • >=5 Sets
    $11,450.00
Model Number:
zhiye-2
Report Suspicious Activity
Overview
Quick Details
Power(W):
4+4
Certification:
CE
Type:
Steel Frame & Purlin Machine
Condition:
New
Production Capacity:
25M
Place of Origin:
Hebei, China
Brand Name:
ZY
Voltage:
220v
Applied plank stuff::
color armor plate
Applied slab thickness::
0.3-1.0mm
Charge in width::
1000mm
Line speed::
0-14m/min
Rolling rows::
16rows
Rolling diameter::
70mm
transmission::
gear or chain
cutting blade::
skd11
roller::
Cr12
Tile Type::
Steel
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 YEARS
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude
Port
tianjin
Lead Time :
40 working days
Machine Description

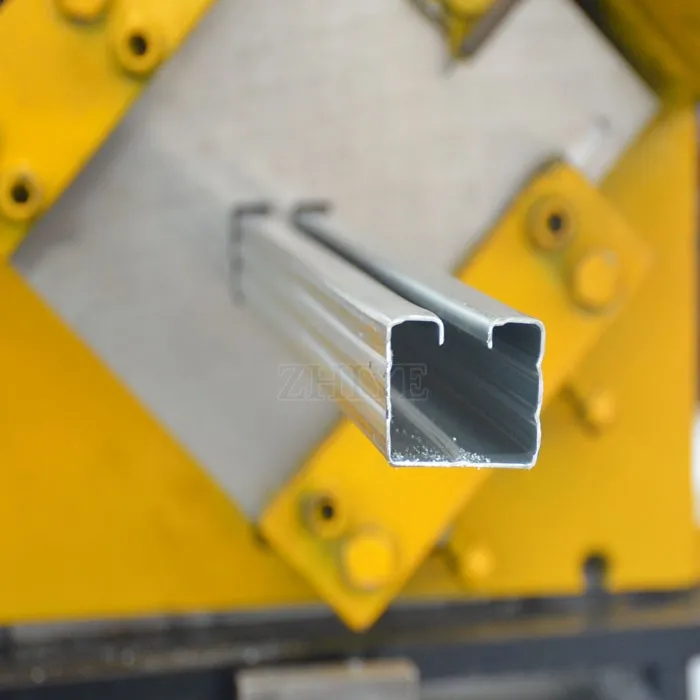

Automatic Steel Light Gauge Roll Forming Making Machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.

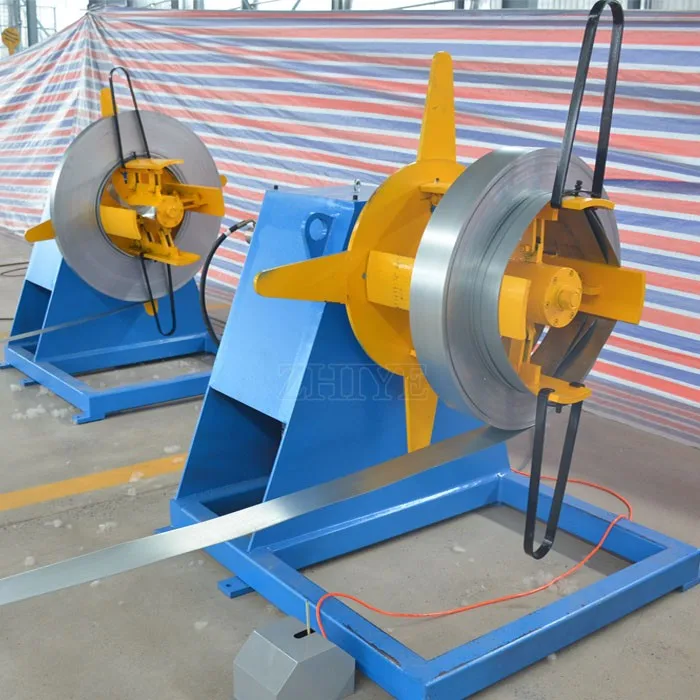

Automatic Steel Light Gauge Roll Forming Making Machine uncoiler:Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity: 5T
Inner diameter: 500-508mm

Automatic Steel Light Gauge Roll Forming Making Machine Feeding platform:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

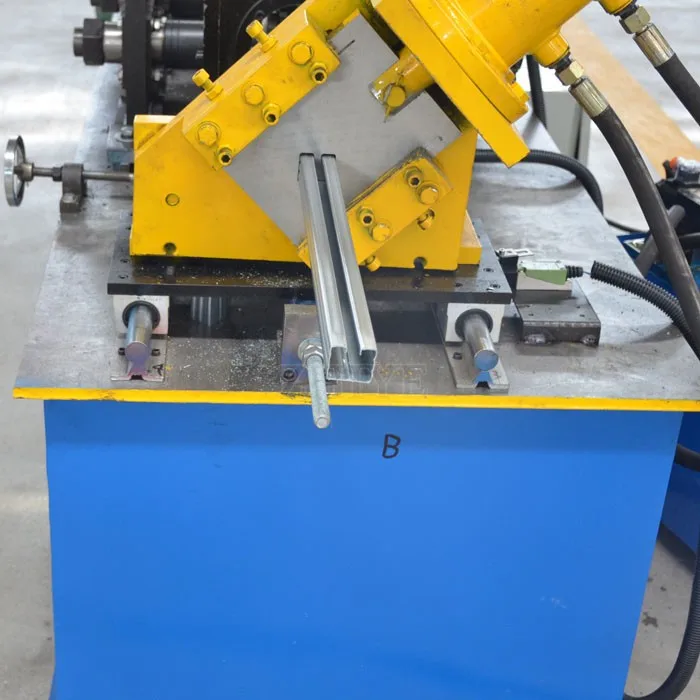

Automatic Steel Light Gauge Roll Forming Making Machine shearing system:It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.
Automatic Steel Light Gauge Roll Forming Making Machine Hydraulic system:It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Related Products

Omega roll forming machine

Tee grid roll forming machine


V angle roll forming machine

Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Zhiye machinery has won numerous customers' trust and support.Our main products are Trapezoidal Roof Panel Roll Forming Machine,Glazed Roofing Tile Roll Forming Line,Roof Ridge Cap Production Line,C/u/z Purlin Roller Former Machine,Roller Door Panel Rolling Forming Machine,Floor Decking Panel Rolling Forming Machine,Downpipe Rain Gutter Roll Forming Machine,Light Steel Frame Cold Roll Forming Machine,Double Layer Roof Sheet Roll Forming Machine,Sandwich Panel Wall Roof Roll Forming Machine.

Certifications
Packing & Delivery

Automatic Steel Light Gauge Roll Forming Making Machine Packing:

nude, the computer controlling part is packed with water proof cloth.

Automatic Steel Light Gauge Roll Forming Making Machine Delivery:

20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.

FAQ

Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.We manufacture Steel Wall Stud Roll Forming Machine
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
