PLC Controlling Aluminum Roof Sheets Rolling Forming Machinery

FOB Reference Price:Get Latest Price
  • 1 - 1 Sets
    $9,500.00
  • >=2 Sets
    $6,500.00
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
10-15m/min
Power(W):
4+4KW
Certification:
CE/ISO9001
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
ZHIYE
Model Number:
ZY
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6.5*0.9*1.4m
Weight:
4 Tons
Coil width::
1220mm
Processing Material::
PPGI, GI,
Material of Rollers::
45# steel
Diameter of Shaft::
75mm
Processing Thickness(mm)::
0.3- 0.6mm
Cutting Model::
Hydraulic Profile Cutting
Production Speed::
0-14m/min
Roller Driven::
Decelerating Motor+Chain
Length Measurement::
Encoder
Voltage::
380V 50/60HZ
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Supply Ability
Supply Ability:
700 Set/Sets per Year

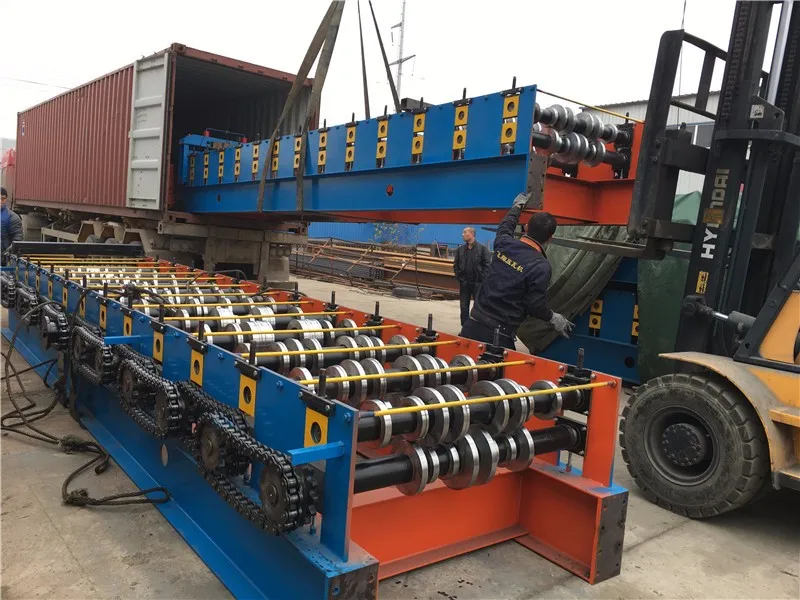

Packaging & Delivery
Packaging Details
by container
by bulk
Port
Tianjin port, China
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Product Description
PLC Controlling Aluminum Roof Sheets Rolling Forming Machinery

*The products of PLC Controlling Aluminum Roof Sheets Rolling Forming Machinery are used as the roof sheet outside of building to increase the beauty and durability of the roof tile panel . We can design the machine according to your requirement .


We put the steel sheet into the feeding part . The roll forming part will work under the motor power. The roller will bite the steel sheet , the sheet will feed into the machine along with the rotation of the roller. The panel enter into pressing part from forming part. The hydraulic cylinder will drive the mold of the pressing system up and down , it can press the color steel into shape of glazed tile. The cutting part can cut the steel tile into specific length.

1.
Processing Material
PPGI,GI
2.
Processing Thickness(mm)
0.3-0.6mm
3.
Coil width
1220mm
4.
Material of Rollers
45# steel, with hard chrome coated
5.
Diameter of Shaft
70mm
6.
Production Speed
0-14m/min
7.
Roller Driven
Decelerating Motor+Chain Transmission
8.
Cutting Model
Hydraulic Profile Cutting
9.
Length Measurement
Encoder
10.
Control Style
PLC
11.
Operation Model
Button + Touch Screen
12.
Voltage
380V 50HZ or at buyer's request
13.
Total Power
8kw
14.
Installation Dimension(L*W*H)
6.5m*1.5m*1.4m
15.
Main Motor Power
6KW with cycloidal reducer
16.
Hydraulic Oil Pump
CB-E 310
17.
Roller Stage
16-20 stage
18.
Leak Frame Load-Bearing
4.6T
Detailed Images

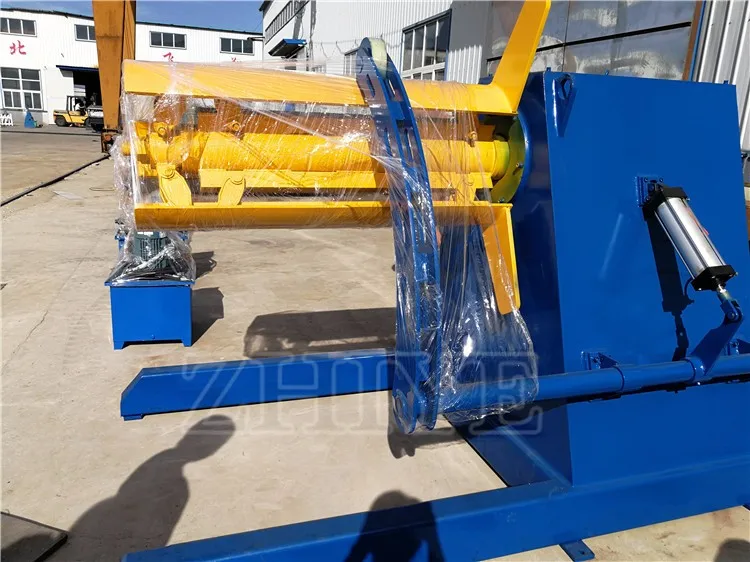

1)Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it The steel coil is expansion by hand.
Loading capacity:5T
Inner diameter: 450-508mm

Wall Tiles Making Machine

2)Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

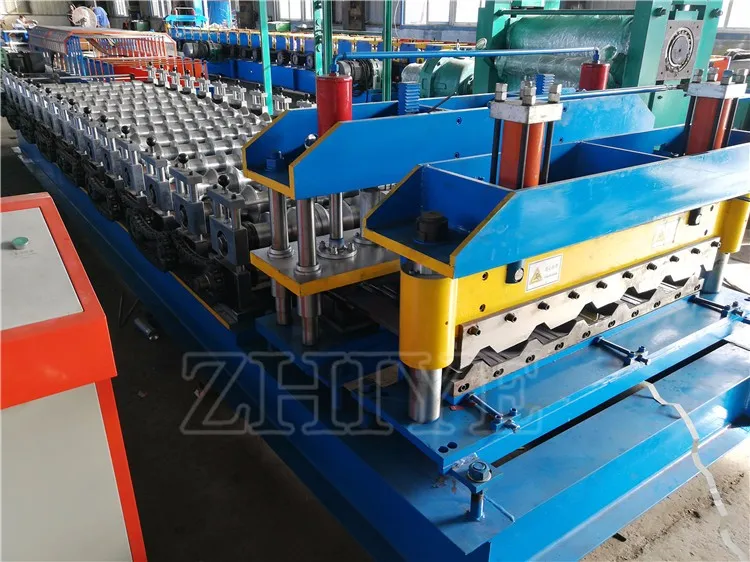

3)Main Roll Forming Machine:

It is designed according to the customers' profile drawing. It adopts motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped

4)Hydraulic System:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.Power:4kw Hydraulic oil: 40#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.With reducer combination, long life, high precision

5)Shearing Mechanism:

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Roofing Tile Making Equipments

6)Computer Control Cabinet:

It adopts Delta/Siemens PLC to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.Touching screen
