Panels produced by this High Quality Metal Flooring Decking Panel Roller Former Machine are mainly used as the floor decking. It has features of high wave, high strength, high degree automatically producing, lower cost and so on.
This panel is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.

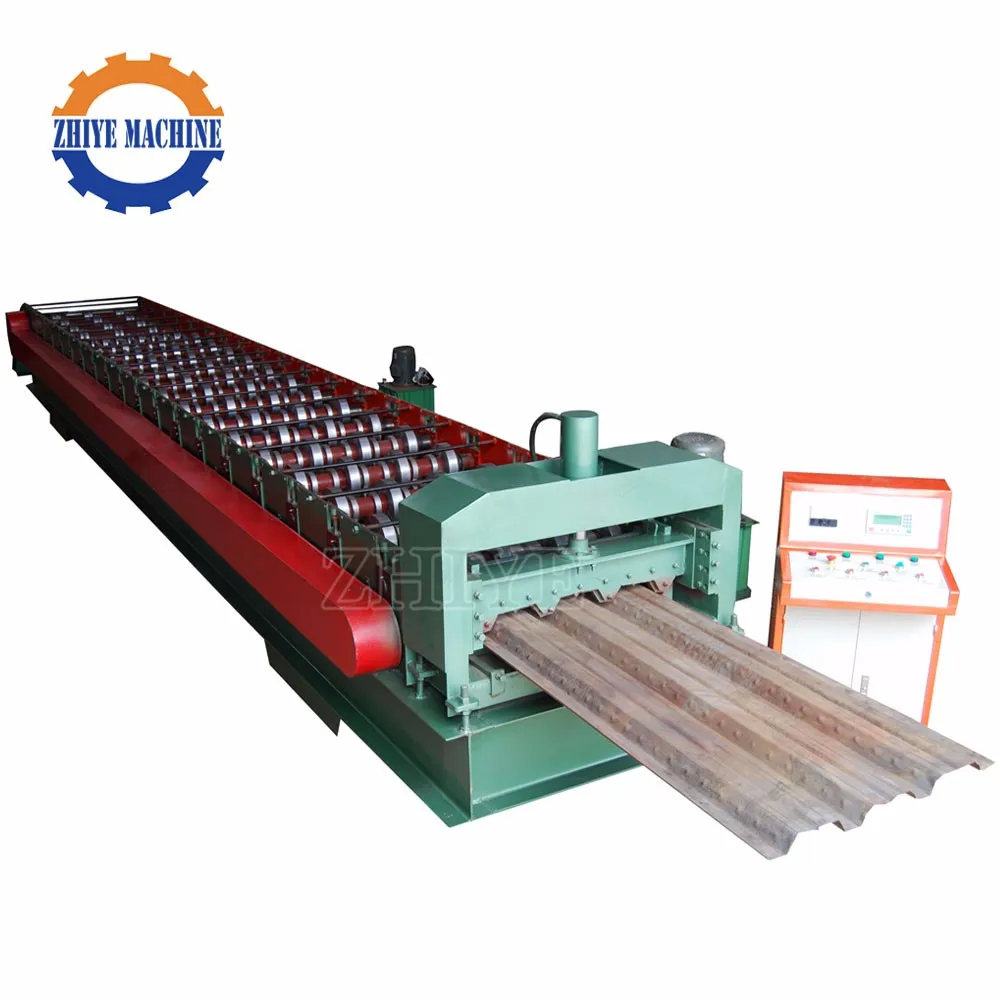

High Quality Metal Flooring Decking Panel Roller Former Machine
Main Frame/Middle plate
H400 Steel Beam/
20mm Steel plate
Material of Rollers
Gcr15,with heat treatment
Diameter of Shaft
100mm,with heat treatment
Number of Rollers
26 stand rollers
Decelerating Motor+1.2" double Chain Transmission
Hydraulic Profile Cutting
It is used to support the steel coil and uncoil it The steel coil is expansion by hand.
Loading capacity: 8t.
Inner diameter: 450-508mm
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
the Improved style for abroad Client

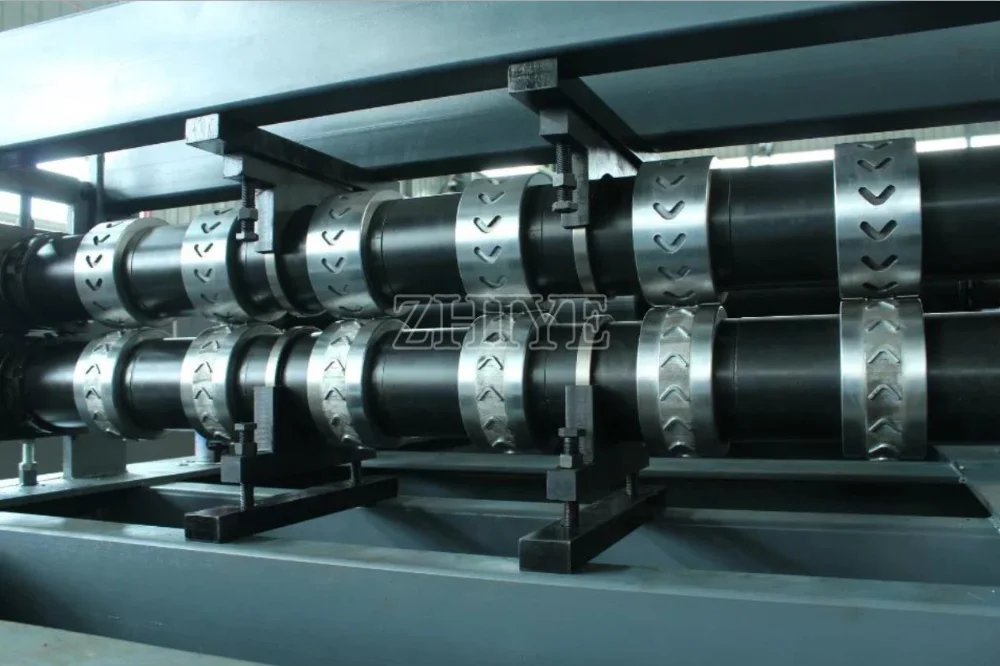

It is designed according to the customers' profile drawing. It adopts motor reducer drive, double 1.2 chain transmission, roller surfaces polishing, hard plating, heat treatment and chroming treatment. The polished surface and the heat treatment towards the
molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Main power: 11kw+11kw(cycloidal planetary gear speed reducer)
1. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
2. Material of blades: Cr12
3. Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
4. Design the knives according the formed sheet
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
